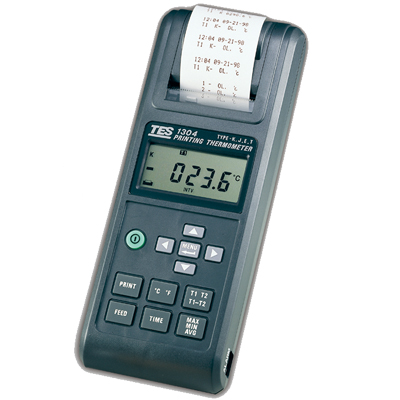

TES-1304

Printing Thermometer

Product Features
  • Type K.J.E.T. Thermocouple Input.
  • Dual Channels with multi-functions scanner ( T1, T2 & T1-T2 ).
  • Built-in thermo printer with programmable Time internal setting.
Printing Thermometer



Measuring Range

Type K: -200~1333(-328~2431)

Type J: -200~760(-328~1400)

Type E: -200~703(-328~1297)

Type T: -200~400(-328~752)

Resolution

0.1/0.1

Accuracy

Type K: ±(0.01%rdg+0.5) (0~982)

±(0.05%rdg+0.5) (982~1333)

±(0.01%rdg+0.9) (32~1800)

±(0.05%rdg+0.9) (1800~2431)

Type J : ±(0.01%rdg+0.5) (0~760)

±(0.01%rdg+0.9) (32~1400)

Type E: ±(0.01%rdg+0.5) (0~703)

±(0.01%rdg+0.9) (32~1297)

Type T: ±(0.01%rdg+0.5) (0~400)

±(0.01%rdg+0.9) (32~752)

Type K/J/E/T: ±(0.5%rdg+0.7) (-200~0)

±(0.5%rdg+1.4) (-328~32)

Type K/J/E/T: ±(0.5%rdg+1.0)(-200~0/-328~32)

Temperature Coefficient

Less that 0.1 times the applicable accuracy specification per ()

Input Protection

60V DC or 24 Vrms AC maximum input voltage on any Combination
 of input Connector

Sampling Rate

1 time/sec

Operating Conditions

0~50(32~122)

0~90% R.H. (0~35)

Power Source

6 pcs size AAA Alkaline Battery

Battery Life

Approx. 30 hours. ( interval printing = 60 minute, not including beeper)

70 hours ( except printing & beeper)

Size

193(L)×74(W)×37(H)mm

Weight

Approx. 365g

Accessories

1. Carrying case, Instruction manual, Battery, type K probe, Alarm (OVER, UNDER) MINI DIN Cable.

2. Two rolls thermo-paper
