Infrared Thermometer

Infrared Thermometer

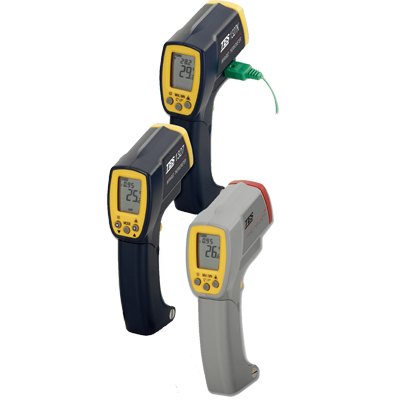

TES-1326S/ TES-1327/TES-1327K

Infrared Thermometer

Product Features

℃ / ℉ Selectable.
Back-light LCD display.
Laser targeting.
Maximum / Minimum function.
Data memory and read function.
Daul thermometer and Dual display. (1327K)
Emissivity adjustable. (1327/1327K)
Audible and visible alarm. (1327/1327K)

Specification
Application
Download

INFRARED THERMOMETER

Display	Backlight LCD display
Measurement Range	~ 500°C (-31°F ~ 932°F )
Resolution	0.1°C / 0.2°C
Accuracy	± 2% reading or ± 2°C
Spectral Response	6 ~ 14μm
Field of View	12:1 optics ratio with a 1” min target
Emissivity	0.17 ~ 1.00 , (1326S : fixed 0.95)
Sighting	Laser marker < 1mw

K-TYPE THERMOMETER (for 1327K)

Measurement Range

-150°C ~ 1350°C (-238°F~ 1999°F)

Resolution 0. 1°C / 1°C , 0.1°F / 1°F

Function	Resolution	Range	Accuracy
°C	0.1°C	-150℃～0℃	±( 0.2%rdg + 1.0℃)
	0.1°C	0℃～200℃	±( 0.1%rdg + 1.0℃)
	1°C	200℃～1350℃	±( 0.2%rdg + 2℃)
°F	0.1°F	-238°F～32°F	±( 0.2%rdg + 2°F)
	0.1°F	32°F～200°F	±( 0.1%rdg + 2°F)
	1°F	200°F～1999°F	±( 0.2%rdg + 4°F)

ØGENERAL SPECIFICATIONS

Data memory capacity	50 sets (Direct reading from LCD display) (1326S/1327) 99 sets (Direct reading from LCD display) (1327K)
Auto power off	approx. 15 sec
Battery Life	Approx. 100 hours (laser pointer and backlight aren’t on use) (Alkaline)
Power Source	One 9V cell (ANSI/NEDA-1604A, IEC-6LR61)
Operating / Storage Condition	0°C ~ 50°C (32°F ~ 122°F) below 80%RH -10°C ~ 60°C (14°F ~ 140°F) below 70%RH
Dimensions	172mm× 118mm × 46mm
Weight	220g
Accessories	Instruction manual, Battery
