Thermo-Hygro-Barometer

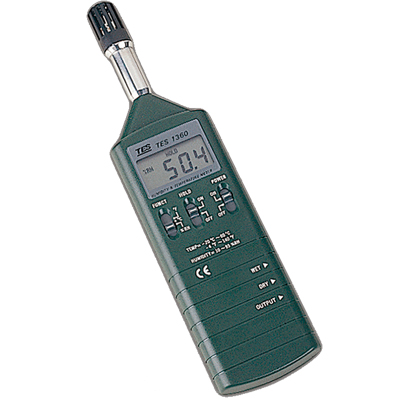

TES-1360A
Humidity/Temperature Meter
Product Features
- Dual display
- High resolution of 0.1% RH, 0.1℃ & 0.1℉.
- Wide range of relative humidity and temperature
measurement (℃ & ℉). - Dew point temperature compute
- Data memory and read function (99 sets)
- Auto power off function.
- Data hold function to hold the LCD reading.
- Compact, light weight and simple operation.
Display
|
3 1/2 digital LCD display.
|
MeasurementRange
|
Humidity: 10% ~ 95% R.H.
Temperature: -20℃ ~ +60℃, -4℉ ~ +140℉
|
Resolution
|
0.1% R.H. , 0.1℃, 0.1℉
|
Accuracy
|
Humidity: ±3%RH (at 25℃, 20 to 80% RH)
±4%RH (at 25℃, 10 to 20% RH and 80 to 90% RH).
±5%RH (at 25℃, 0 to 10% RH and 90 to 100% RH).
Temperature: ±0.4℃(at +5℃ to +60℃)
±0.8℃(at -20℃ to 5℃ and +60℃ to +80℃)
±0.8℉(at +41℉ to +140℉)
±1.6℉(at -4℉ to 41℉ and +140℉ to +176℉)
|
Response time (at 1m/s air flow)
|
Humidity: t63% < 10s (from 33 to 75% RH)
Temperature: t63% < 10s (from 15℃ to 45℃)
|
Sampling rate
|
3 time per second.
|
Operating temperature and humidity
|
0℃ to 60℃, below 95% RH
|
Storage temperature and humidity
|
-10℃ to 60℃, below 70% RH
|
Power supply
|
Single 9V Battery 006P 9V or IEC 6F22, or NEDA 1604
|
Battery life
|
Approx. 140 hours
|
Dimensions
|
270mm(L)×68mm(W)×25mm(H),
10.6”(L)×2.7”(W)×1.0”(H)
|
Weight
|
Approx. 210g (including battery)
|
Accessories
|
Instruction manual, Battery, Carry case.
|
