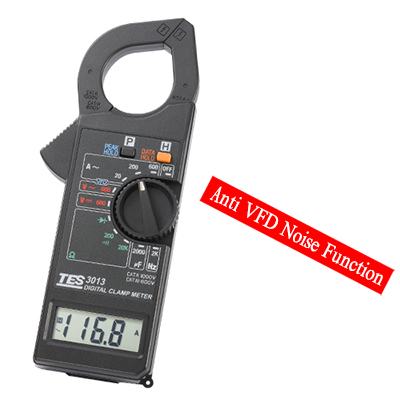

TES-3013 / TES-3014

Digital Clamp Meter

Product Features
  • Variable-frequency drive VFD voltage & Current measurement.
  • ACA: 20A, 200A, 600A (3013), 1000A (3014)
  • Peak Hold.
  • Data Hold.
  • Frequency Count.
  • Diode Check.
  • Continuity Buzzer.
  • Capacitance measurement.
  • Low Battery Indication.
  • Unit & Sign Display.
Digital Clamp Meter

ELECTRICAL SPECIFICATION:



AC Current

Range

Resolution

Accuracy (50Hz/60Hz)

Overload Protection

20A

10mA

±(2%rdg + 5dgts)

1000A

(Within 30 seconds)

200A

100mA

600A. 1000A

1A



DC Voltage

Range

Resolution

Accuracy

Input Impedance

Overload Protection

600V

1V

±(0.8%rdg + 2dgt)

10MΩ

600V



AC Voltage

Range

Resolution

Accuracy

Input Impedance

Overload Protection

600V

1V

±(1.2%rdg + 3dgts) at 50, 60Hz

±(5%rdg + 3dgts) at 40 ~ 400Hz

10MΩ

600V



Resistance (Ω)

Range

Resolution

Accuracy

Max. Open Circuit Voltage

Overload Protection

200Ω

100mΩ

±(1%rdg + 2dgts)

3.5V

600V

20kΩ

10Ω

0.3V



Frequency (Hz) (10Hz-2KHz)

Range

Resolution

Accuracy

Max. Input Sensitivity

Max. Allowable Applied Voltage

2kHz

1Hz

±(1%rdg + 2dgts)

100mVrms

600V



Diode (    )

Range

Resolution

Max. Test Current

Max. Open Circuit Voltage

Over Voltage Protection

1mV

1.5mA

3.5V

600V



Continuity (BEEPER)

Range

Resolution

Operation Resistance

Max. Open Circuit Voltage

Over Protection

0.1Ω

Below 100Ω

3.5V

600V



Capacitance (μF)

Range

Resolution

Accuracy

Max. Open Circuit Voltage

Over Protection

2000μF

1μF

±(5%rdg + 2dgts)

3.5V

600V



Peak Hold Measurement (23±5Below 80% RH)

AC Current

Range

Resolution

Accuracy (50Hz 60Hz)

Overload Protection

20A

10mA

±(2%rdg + 10dgts)

1000A

(Within 30 seconds)

200A

100mA

600A, 1000A

1A



AC Voltage

Range

Resolution

Accuracy (50Hz 60Hz)

Input Impedance

Overload Protection

600V

1V

±(1.5%rdg + 8dgts)

10MΩ

600V



 GENERAL SPECIFICATION:
*  Operating Temperature: 0~40, 0-80% RH.

  *  Sampling Rate: 2.5 times per second.

  *  The time of peak Value Response: about 100ms.

  *  Power Source: 006P DC 9V 1pc.

  *  Size & Weight: 208mm×65mm×31mm & 310g.
     Accessories: Test probe 1 pair, Instruction Manual,
                  Carrying Case, Battery.
