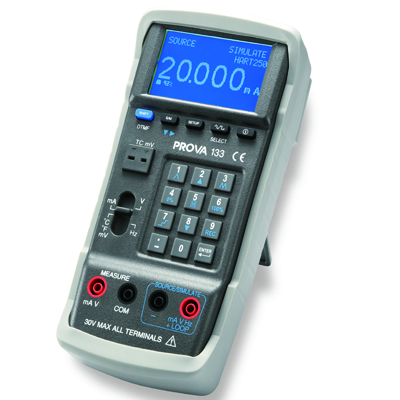

PROVA-133
Process Calibrator/Simulator + Function Generator
Product Features
- Simulate 4~20 mA process transmitter
- Source 4~20 mA loop Current
- Simulate electronic load (Max. 30V, 20mA)
- Test LED brightness (0~24mA)
- Source -9.999~70mV and 0~15V
- Calibrate temperature of 11 types of thermocouples
- Handheld function generator of sine wave, square wave, triangular wave, arbitrary wave from 0.3 to 20KHz)
- Pulse generator (3μS to 999.99mS)
- Map 4~20 mA into engineering units
- Source: mA, V, Hz, sine wave, square wave, triangular wave, truncated sine wave, user programmable waveform and temperature.
- Measure: Current (DC mA), Voltage (DC mV, DC V), and temperature (°C, °F)
- Measure 4~20 mA with 24V loop supply simultaneously
- Selectable 250Ω HART resistor to facilitate use with HART communication device
- Programmable cold junction compensation for temperature measurement
- Auto step and auto ramp for sourcing mA, V, and temperature
- Dot matrix LCD with backlight
- Rechargeable lithium battery (1600mAh)
- Data logging function for source and measurement
- Program calibrator through PC USB port
- Programmable 0% and 100% value for easy 25% step function
- DTMF (Dual Tone Multi-Frequency) can perform professional testing for telephone line and audio product (MP3 or MD)
Electrical Specifications: (23+/- 5℃, 10 minutes after turning on the power)
mA (source) (Vopen > 24V)
|
Range
|
Resolution
|
Accuracy of Reading
|
|
0.005mA to 4mA
|
1uA
|
+/-0.03% +/-5dgts
|
|
4mA to 20mA
|
+/-0.03% +/-3dgts
|
|
|
20mA to 24mA
|
+/-0.03% +/-5dgts
|
V (source) (maximum load 1mA, short circuit protection < 100mA)
|
Range
|
Resolution
|
Accuracy of Reading
|
|
0.005V to 10V
|
0.001V
|
+/-0.03% +/-5dgts
|
|
10V to 15V
|
mA (measure)
|
Range
|
Resolution
|
Accuracy of Reading
|
|
-4mA to -0.005mA
|
1μA
|
+/-0.03% +/-10dgts
|
|
0.005mA to 4mA
|
+/-0.03% +/-5dgts
|
|
|
4mA to 20mA
|
+/-0.03% +/-3dgts
|
|
|
20mA to 24mA
|
+/-0.03% +/-5dgts
|
If reading of mA (measure) is less than 5 digits, it is displayed as 0.
V (measure)
|
Range
|
Resolution
|
Accuracy of Reading
|
|
-3V to -0.005V
|
0.001V
|
+/-0.03% +/-10dgts
|
|
0.005V to 10V
|
+/-0.03% +/-5dgts
|
|
|
10V to 24V
|
+/-0.03% +/-5dgts
|
If reading of V (measure) is less than 5 digits, it is displayed as 0.
Frequency (source, 10 Vpp, 0V offset, square wave, duty cycle = 50%)
|
Range (Hz)
|
Input Resolution
|
Accuracy
|
|
0.3 to 99.999
|
0.1Hz
|
0.002Hz
|
|
10.00 to 999.99
|
0.1Hz
|
0.02Hz
|
|
1000.0 to 9999.9
|
0.1Hz
|
0.2Hz
|
|
10000 to 20000
|
1Hz
|
2Hz
|
Duty Cycle(%, square wave, 10 Vpp, 0.3~20KHz)
|
Range
|
Resolution
|
Rise Time of Vpp
|
Fall Time of Vpp
|
|
0 to 100%
|
1%
|
10μS max,
5μS typical
|
15μS max,
7.5μS typical
|
Pulse (square wave, 10 Vpp, Offset -5V~+5V)
|
Range
|
Resolution
|
Rise Time of Vpp
|
Fall Time of Vpp
|
|
3.0μS to 9999.9μS
|
0.1μS
|
10μS max,
5μS typical
|
15μS max,
7.5μS typical
|
|
10.000mS to 99.999mS
|
0.001mS
|
||
|
100.00mS to 999.99mS
|
0.01mS
|
Voltage Peak to Peak for Sine Wave
(Vpp, 0.3~20KHz, 50% duty cycle, sine wave, 0V offset)
|
Range (V)
|
Resolution
|
Accuracy of Reading
|
|
0.1 to 20V
|
0.001V
|
5% +/- 0.3V
|
Voltage Peak to Peak for Non-Sine Wave (Vpp, 0.3~20KHz, 0V offset)
|
Range (V)
|
Resolution
|
Accuracy of Reading
|
|
0.1 to 20V
|
0.001V
|
6% +/- 0.4V
|
Voltage Peak to Peak(Vpp, 0.3~20KHz, 50% duty cycle, square wave, 0V offset)
|
Range (V)
|
Resolution
|
Accuracy of Reading
|
|
1 to 20V
|
0.001V
|
6% +/- 0.4V
|
Voltage of Offset(Maximum Vpp < 20V)
|
Range
|
Resolution
|
Accuracy of Reading
|
|
-5V to 5V
|
0.001V
|
5% +/-0.5V +/-5%xVpp
|
Temperature, Thermocouples
(source and measure, 0.1C & 0.1F Resolution, Internal Cold Junction Compensation, thermocouple accuracy
not included, 3 minutes after plugging in thermocouples.)
|
|
°C
|
°F
|
||
|
Range
|
Accuracy
|
Range
|
Accuracy
|
|
|
K
|
-200 to -150
|
2.0
|
-382 to -238
|
3.6
|
|
-150 to 0
|
1.2
|
-238 to 32
|
2.1
|
|
|
0 to 1000
|
0.8
|
32 to 1832
|
1.4
|
|
|
1000 to 1370
|
1.2
|
1832 to 2498
|
2.1
|
|
|
J
|
-200 to -150
|
2.0
|
-382 to -238
|
3.6
|
|
-150 to 0
|
1.0
|
-238 to 32
|
1.8
|
|
|
0 to 1050
|
0.7
|
32 to 1922
|
1.2
|
|
|
E
|
-200 to -150
|
1.5
|
-382 to -238
|
2.7
|
|
-150 to 0
|
0.9
|
-238 to 32
|
1.6
|
|
|
0 to 850
|
0.7
|
32 to 1562
|
1.2
|
|
|
T
|
-200 to -150
|
1.5
|
-382 to -238
|
2.7
|
|
-150 to 0
|
1.2
|
-238 to 32
|
2.1
|
|
|
0 to 400
|
0.8
|
32 to 752
|
1.4
|
|
|
R
|
0 to 500
|
1.8
|
32 to 932
|
3.2
|
|
500 to 1760
|
1.5
|
932 to 3200
|
2.7
|
|
|
S
|
0 to 500
|
1.8
|
32 to 932
|
3.2
|
|
500 to 1760
|
1.5
|
932 to 3200
|
2.7
|
|
|
N
|
-200 to 0
|
1.5
|
-328 to 32
|
2.7
|
|
0 to 1300
|
0.9
|
32 to 2372
|
1.6
|
|
|
L
|
-200 to 0
|
0.9
|
-328 to 32
|
1.6
|
|
0 to 900
|
0.7
|
32 to 1652
|
1.2
|
|
|
U
|
-200 to 0
|
1.1
|
-328 to 32
|
1.9
|
|
0 to 600
|
0.7
|
32 to 1112
|
1.2
|
|
|
B
|
600 to 800
|
2.2
|
1112 to 1472
|
3.9
|
|
800 to 1000
|
1.8
|
1472 to 1832
|
3.2
|
|
|
1000 to 1820
|
1.4
|
1832 to 3308
|
2.5
|
|
|
C
|
0 to 1800
|
1.0
|
32 to 3272
|
1.8
|
|
1800 to 2310
|
1.5
|
3272 to 4190
|
2.7
|
|
|
mV
|
-10mV to 70mV
|
0.05mV
|
-10mV to 70mV
|
0.05mV
|
DTMF (Hz)
|
Range (Hz)
|
Resolution
|
Accuracy of Reading
|
|
0.3 to 99.999
|
0.1Hz
|
0.002Hz
|
|
10.00 to 999.99
|
0.1Hz
|
0.02Hz
|
|
1000.0 to 9999.9
|
0.1Hz
|
0.2Hz
|
|
10000 to 20000
|
1Hz
|
2Hz
|
DTMF (%)
|
Range (%)
|
Resolution
|
Accuracy of Reading
|
|
0% ~ 100%
|
1%
|
5%
|
DTMF (Phase Angle)
|
Range (°)
|
Resolution
|
Accuracy of Reading
|
|
0 ~ 360
|
1°
|
100μS+1°
|
DTMF (Vpp, F1=F2,
|
Range
|
Resolution
|
Accuracy of Reading
|
|
5V ~ 20V
|
0.001V
|
10% +/-0.6V
|
DTMF (Offset, F1=F2,
|
Range
|
Resolution
|
Accuracy of Reading
|
|
-5V ~ 5V
|
0.001V
|
10% +/-0.6V +/-5%xVpp
|
General Specifications:
|
AC Power Adaptor:
|
AC 110V or AC 220V, 50/60Hz input.
DC 15V / 0.5A output
|
|
Dimension:
|
214.0 (L) x 98.7 (W) x 56.0 (H) mm
8.4" (L) x 3.9" (W) x 2.2" (H)
|
|
Weight:
|
650g / 22.9oz (Batteries included)
|
|
Operation Environment:
|
0℃ ~ 50℃, <85% RH
|
|
Storage Environment:
|
-20℃ ~ 60℃, <75% RH
|
|
Accessories:
|
Carrying case x 1, User manual x 1,
AC power adaptor x 1, USB cable x 1,
Software CD x 1, Software manual x 1,
K-type thermocouple (dual plugs) x 1,
Alligator clips x 2 (black and red),
Test leads x 2 (black and red),
Rechargeable lithium battery (11.1V/ 1600mAh) x 1
|
