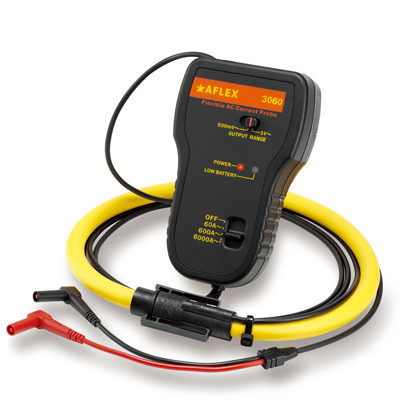

AFLEX-3060

Flexible AC Current Probe

Product Features
  • Three current ranges: 60A, 600A and 6000A.
  • Two output sensitivities (600mV and 1V), versatile for measuring instruments.
  • Input protection up to 600V.
  • Suitable for any electrical system.
  • Wide bandwidth, low phase shift.
  • Low battery indication.
Flexible AC Current Probe



CE CAT III 600V







Electrical Specifications:



(23±3, 50/60Hz, conductor located at the center of the flexible loop)



Sliding Switch Position

600A AC

6000A AC

Range

6 – 600A

60 – 6000A

Output Select

600mV

1V

600mV

1V

Output Signal

1mV/A

1.66mV/A

0.1mV/A

0.166mV/A

Accuracy

1% of full scale

1% of full scale

Linearity (10 to 100%)

0.2% of reading

0.2% of reading

Position Sensitivity

2% of full scale

2% of full scale

External Field (200 mm from the head, < 40A/m)

1% of full scale

1% of full scale

Phase Error

< ± 1˚

< ±1˚

Temperature Coefficient
 ( 0 to 70˚C)

0.02% of reading / ˚C

0.02% of reading / ˚C







Sliding Switch Position

60A AC

Range

6 – 60A

Output Select

600mV

1V

Output Signal

10mV/A

16.6mV/A

Accuracy

3% of full scale

Linearity (10 to 100%)

0.2% of reading

Position Sensitivity

3% of full scale

External Field (200 mm from the head, < 40A/m)

1% of full scale

Phase Error

< ± 2˚

Temperature Coefficient
 ( 0 to 70˚C)

0.02% of reading / ˚C







DC offset:                                < 20mVDC (600A AC range)



                                                < 100mVDC (60A AC range)



                                                < 20mVDC (6000A AC range)



Noise:                                      < 2mVACRMS



Bandwidth (-3dB):                  10 to 10 KHz



Load Impedance:                    1



Battery:                                    2 x AA 1.5V Alkaline (2000mAHrs)



Battery Life:                             300 Hours







General Specifications:



Probe Length:             3000-36
36 in / 920 mm
Minimum Bending Diameter:
35mm
Connector Diameter:
23mm
Cable Diameter:
14mm
Cable Length from Probe to Box:
1700mm
Cable Length from Box to Output:
1700mm
Dimension (Box):
130mm(L) x 80mm(W)x 43mm(H)
5.1”(L) x 3.1”(W) x 1.7”(H)
Battery Type:
two 1.5V SUM-3
(Alkaline, 2000mAHrs)
Battery Life:
300 Hours
Operating Temperature:
-10°C to 85°C
Operating Humidity:
15% to 85% RH
Altitude:
up to 2000M
Storage Temperature:
-20°C to 85°C
Storage Humidity:
15% to 85% RH
Weight:
450g (battery included)
Accessories:
Carrying case x 1
Users manual x 1
Batteries 1.5V x 2
