Coating Thickness Tester

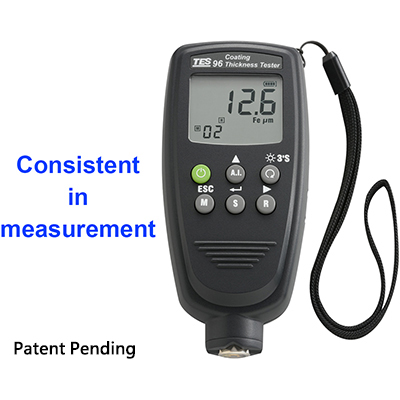

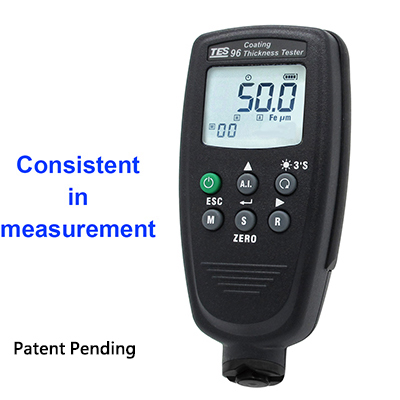

TES-96

Coating Thickness Tester

Product Features
  • Automatic ferrous / non-ferrous substrate
    material measurement
  • Non-magnetic coating on ferrous metal
    substrate and insulating coating on
    non-ferrous metal substrate measurement
  • Audible and visual warning when tolerance
    limits are exceeded
  • Statistical display of significant values such as
    mean value, standard deviation, min, max, range
  • Units of measurement μm/mils select
  • Calibration curve memory, 8 for ferrous substrate
    and 8 for non-ferrous substrate
  • Large LCD display with backlight
  • Auto power off

Measuring Method

Electromagnetic and Eddy Current (automatic substrate recognize function)

Measurable Range

0~2000 μm or 0~80.0 mils

Measuring Accuracy

±1 μm: < 50 μm

±2.5%: 50 μm ~ < 1000 μm

±3%: 1000 μm < 2000 μm

Resolution

±0.1 μm: < 100 μm

1 μm: 100 μm or greater

Data Memory

99 points

Group Memory

10 group (100 points per group)

Power Supply

1.5 V alkaline batteries (size AAA) x 2

Battery Life

Approx. 30 hours (with backlight off)

Operating Temperature

0 to 40 ̊C

Dimensions & Weight

114 (L) x 53 (W) x 31 (H) mm / Approx. 102 g

Accessories

Zero calibration holder (Iron substrate, aluminum substrate)(Front side / Reverse side), Calibration foils (Approx. 50, 100, 1000 μm), Alkaline batteries, Carrying pouch, Wrist strap, Operating manual
