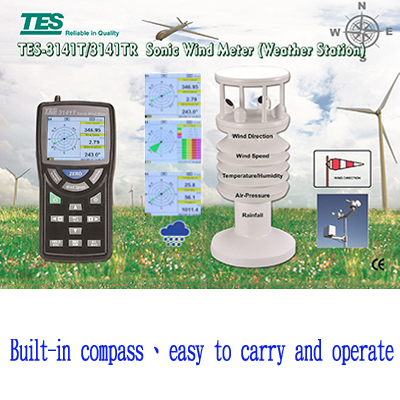

TES-3141T
Weather Station
Product Features
- Direct reading data via the meter, don't need via PC.
- Wind direction, Wind speed, Barometric pressure, Humidity and Temperature
- Wind rose plot
- Data hold & Maximum/Minimum/Average function
- Manual data memory and read function: 99 sets
- Auto data memory: microSD card
- USB interface APPLICATIONS
- Safe detection of wind direction and speed of paragliders, hot air balloons, sailboats, and the environment
- UAV, model aircraft take-off and landing, wind direction, wind speed observation
- Wind direction and wind speed information for large racing fields, archery fields and shooting ranges
- Wind direction and wind speed information of noise pollution
- Wind direction and wind speed information of air pollution
- Determination of wind direction and wind speed of agricultural spraying chemicals
- Determination of fire brigade outdoor fire, extinguishing, wind direction and wind speed
- Wind direction and wind speed information when setting the construction industry hoist and port hoist
- Management and control of cold damage in aquaculture
- Environmental assessment of wind power installations
- Agriculture, airports, construction, environmental monitoring
- Marine and Harbour applications
|
Weather transmitter
measurement function |
Wind direction, Wind speed, Barometric pressure, Relative humidity and Air temperature
|
|
Wind direction
|
Range: 0 to 359.9°
Accuracy: ±5.0° at 10m/s
Resolution: 0.1°
|
|
Wind speed
|
Range: 0 to 60m/s
Accuracy: ±5% at 10m/s
Resolution: 0.01m/s, 0.01km/h, 0.1m/min, 1m/hr, 0.01mph, 0.1knots, 0.1ft/min
|
|
Barometric pressure
|
Range: 300 to 1200hPa
Accuracy: ±2hPa at 25°C (77°F), ±4hPa at -20 to 85°C (-4 to 185°F)
Resolution: 0.1hPa, 0.001psi, 0.1mmHg, 0.01inH2O
|
|
Relative humidity
|
Range: 0 to 100%RH
Accuracy: at 25°C (77°F)
±3%RH at 20 to 80%RH
±5%RH at 0 to 20%RH & 80 to 100%RH
Resolution: 0.1%RH
|
|
Air temperature
|
Range: -40°C to 60°C (-40°F to 140°F)
Accuracy: ±0.5°C (at +5°C to +60°C) / ±1°F (at +41°F to +140°F)
±1.2°C (at -40°C to +5°C) / ±2.4°F (at -40°F to +41°F) Resolution: 0.1°C (0.1°F)
|
|
Operating temperature
|
Weather transmitter: -40°C to 60°C (-40°F to 140°F)
|
|
Meter: 0°C to 50°C (32°F to 122°F)
|
|
|
Storage temperature
|
Weather transmitter: -40°C to 60°C (-40°F to 140°F)
|
|
Meter: -20°C to 50°C (-40°F to 122°F)
|
|
|
Response time
|
1s
|
|
Housing protection class
|
Weather transmitter: IP65
|
|
Power requirements
|
Meter: Rechargeable Li-ion battery, AC adapter 9V
|
|
Battery life
|
Approx. 15 hours (backlight off), Charge time: 3 hours
|
|
Dimension / Weight
|
Weather transmitter:145(ɸ)x237mm / Approx. 605g
|
|
Meter: 158(L) x 78(W) x 40(H)mm / Approx. 242g
|
|
|
Accessories
|
Instruction manual, Rechargeable Li-ion battery, Carrying case, AC adapter, Mounting tube, CD Software, micro-USB cable, 5 Meter cable
|
|
Optional
|
Bottom socket
|
