Thermometer
.jpg)

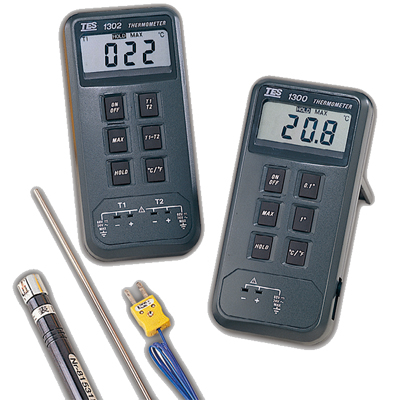

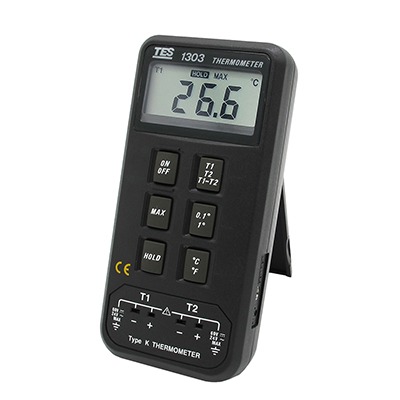

TES-1300 / TES-1303
Thermometer
Product Features
- Type “K” Thermocouple Input
- Switchable Resolution 0.1°/ 1°
- With ℃ & ℉ switching
- Max Hold Function
- Data Hold Function
- Room Temperature Compensated
- Aux output JACKS
- T1 & T2 dual points display(1303)
- T1 – T2 differential measurement(1303)
- Flip-up stand
|
Measuring Rang
|
-50°C ~ 1300°C, -50°F ~ 1999°F
|
|
Sensor
|
K Type Thermocouple
|
|
Input
|
Single Channel / Dual Channel
|
|
Resolution
|
-50°C ~ 199.9°C…..0.1°C
-50℉ ~ 199.9°F…..0.1°F
(Others 1°C/1°F)
|
|
Accuracy
|
-50°C ~ 199.9°C…0.3%rdg + 1°C
-50°F~ 199.9°F…0.3%rdg + 2°F
-50°C ~ 1000°C…0.5%rdg + 1°C
-50°F ~ 1999°F…0.5%rdg + 2°F
1000°C ~ 1300°C…0.75%rdg + 1°C
(apply to mainframe only at 23°C ± 5°C)
|
|
Auxilitary Outputs
(for Data Recording)
|
1mV/°C (°F)…at 0.1°C/0.1°F range
0.1mV/°C (°F)…at 1°C/1°F range
|
|
Temperature Coefficient
|
Less that 0.1 times the applicable accuracy
specification per °C (°F) |
|
Input Protection
|
60V DC or 24 Vrms AC maximum input voltage on any Combination of input Connector
|
|
Sampling Rate
|
2.5 times/sec
|
|
Operating Conditions
|
0°C ~ 50°C (32°F ~ 122°F)
0 ~ 80% R.H. |
|
Power Source
|
One 9V battery (006P or IEC6F22)
|
|
Size/Weight
|
135mm(L)×72mm(W)×31mm(H) / 235g
|
|
Battery Life
|
200 hours (1300) / 100 hours (1303) (Alkaline Battery)
|
|
Accessories
|
Battery, Instruction, Manual
|
