Thermometer

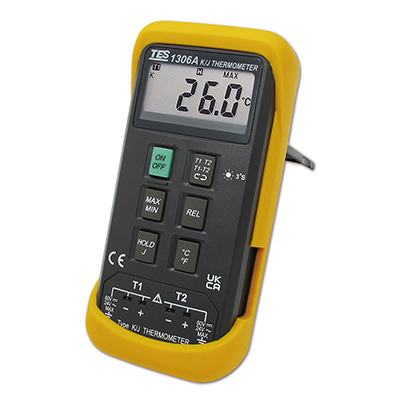

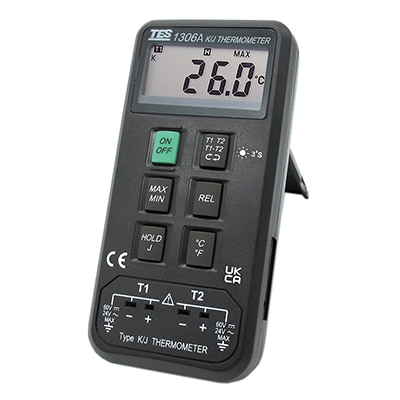

TES-1306

Thermometer

Product Features

K/J Type thermocouple input
Auto ranging
Data Hold
Maximum/Minimum reading
Relative reading
Multi-channels scanner (T1→T2→T1-T2)

Specification
Application
Download

Function	Resolution	Range		Accuracy
Function	Resolution	Type K	Type J	Accuracy
°C	0.1°C	-200°C~-50°C	-200°C~-50°C	±(0.5%rdg+1.0°C)
		-50°C~0°C	-50°C~0°C	±(0.2%rdg+1.0°C)
		0°C~200°C	0°C~150°C	±(0.1%rdg+ 0.8°C)
	1°C	200°C~1370°C	150°C~760°C	±(0.2%rdg+ 2°C)
°F	0.2°F	-328°F~-58°F	-328°F~-58°F	±(0.5%rdg+ 2.0°F)
		-58°F~32°F	-58°F~32°F	±(0.2%rdg+ 2.0°F)
		32°F~392°F	32°F~302°F	±(0.1%rdg+1.6°F)
	2°F	392°F~2498°F	302°F~1400°F	±(0.2%rdg+3°F)

Input Protection	60VDC/24Vrms
Power Source	One 9V battery or 006p, NEDA1604 or IEC6F22
Battery Life	Approx. 100 hours (Alkaline Battery)
Operating Temperature and Humidity	0°C to 40°C (32°F to 104°F) below 80%RH
Storage Temperature and Humidity	-10°C to 60°C (14°F to 140°F) below 70%RH
Dimensions	135(L) × 72(W) × 31(H)mm
Weight	Approx. 235g
Accessories	Battery, Instruction Manual

※OPTIONAL TEMPERATURE PROBES K(CA) TYPE THERMOCOUPLE

Model	Testing Range	Description
TP-K01 Bead	-50°C～200°C/-58°F～392°F	For general condition, especially for complex and place hard to reach.
TP-K02 Immersion	-50°C～600°C/-58°F～1112°F	For temperature measurement of liuqid or gels.
TP-K03 Surface	-50°C～400°C/-58°F～752°F	For surface measurement.
