Sound Level Meter
.jpg)

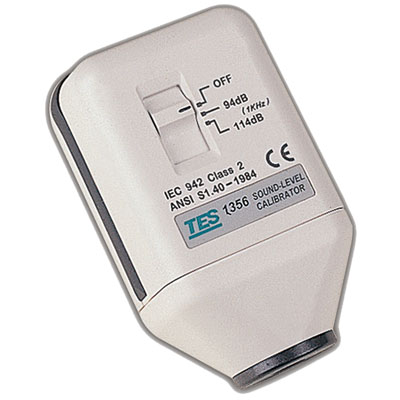

TES-1356
Sound-Level Calibrator
Product Features
- 94dB and 114dB Sound Calibration at 1KHz
- Accurate and Simple to use
- Fits 1”, 1/2” or 1/4” diameter microphone
|
Output Sound Pressure Levels
|
114dB and 94dB re 20 uPa under reference conditions.
|
|
Output Frequency
|
1000Hz ±2%
|
|
Reference Conditions
|
TEMPERATURE →20°C(68°F)
ATMOSPHERIC PRESSURE →1013 mbar (760mm of Hg)
RELATIVE HUMIDITY →65%
|
|
Accuracy of Sound Pressure Level
|
Under stated reference environment conditions ±0.5dB
|
|
Power
|
One 9V battery 006P or IEC 6F22 or NEDA 1604.
|
|
Battery Test
|
Internal circuitry checks condition of battery continuously.
Calibrator will operate at all if battery voltage falls below acceptable range.
|
|
Battery life
|
About 20 hours (Alkaline Battery)
|
|
Dimensions
|
103(L)×63(W)×54(H)mm
|
|
Weight
|
approx. 200g (include batteries)
|
|
Operating temperature
|
-10～50°C(14～122°F)
|
|
Operating humidity
|
0～90%RH
|
|
Accessories
|
9V battery, Carrying case, Instruction manual, 1/2” and 1/4” Microphone Adaptor
|
