TES-1337B
Lux Intensity Meter
Product Features
- Application:Street Lighting,tummel lighting,etc.

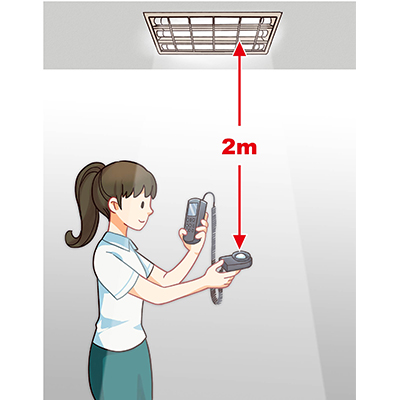

- Luminous intensity(cd)=Lux x Distance²
- Spectral correction factor function (include LED)
- User calibration function (CAL)
- Dual Display, 4-digit LCD reading.
- Spectral Sensitivity close to CIE photopic Curve.
- Measuring Levels Ranging 0.01 to 200.0 Klux, 0.001 to 20.00 Kfc, Autoranging 5 step.
- Accurate and Instant response.
- Luminous intensity measurement.
- Data Hold function.
- Data memory and read function.
- Point - average function.
- Auto power off function.
|
Display
|
Dual display 4 digit LCD read out.
|
|
Measuring Range
|
50.00 lux, 500.0 lux, 5000 lux, 50.00 klux, 200.0 klux
5.000 fc, 50.00 fc, 500.0 fc, 5000 fc, 20.00 kfc Auto ranging (5 step) (1 fc = 10.76 lux)
|
|
Overrange Display
|
OL is displayed
|
|
Resolution
|
0.01 lux, 0.001 fc
|
|
Accuracy
|
±3%rdg ±5dgt (Calibrated to standard
incandescent lamp, 2856 K) |
|
CIE photopic f ’1
|
≦6%
|
|
Temperature Characteristics
|
±0.1%/°C
|
|
Measuring Rate
|
Approximately 5 time/sec
|
|
Photosensor
|
Silicon photodiodes
|
|
Data Memory Capacity
|
99 sets. (Direct reading from LCD display)
|
|
Operating / Storage Conditions
|
0°C ~ 50°C <80% RH
-10°C ~ 60°C <70%RH |
|
Power Source
|
6 pcs AAA size Battery
|
|
Battery Life (typical)
|
100 hours
|
|
Photosensor Lead Length
|
150 cm (approx.)
|
|
Photosensor Dimensions
|
100(L) ×60(W) ×27(H)mm
|
|
Dimension
|
150(L) ×72(W) ×33(H)mm
|
|
Weight
|
320g
|
|
Accessories
|
Carrying case, Instruction manual, Battery
|
