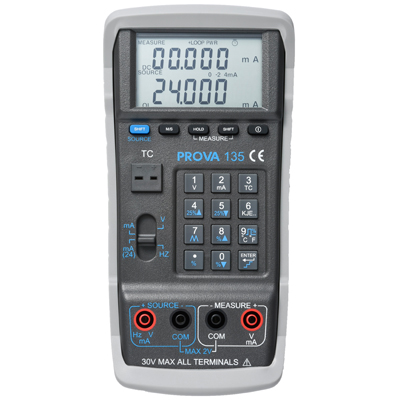

Multifunction Calibrator
.jpg)
4-20mA Loop Calibrator + Thermometer
- Source 4~20mA, 0~24mA with 1μA resolution (1KΩ load, 24V loop supply), basic accuracy 0.025%.
- Source 0~24.000V with 1mV resolution.
- Source frequency 1~20000Hz square wave with programmable duty cycle (1~99%).
- Auto step and auto ramp for sourcing mA, V.
- Easy fixed 25% up and down, or programmable percentage (1~99%) increase and decrease (mA, V).
- Measure DC mA with loop power (24V output).
- Measure DC V.
- Measure Temperature (°C, °F) of 11 types of thermocouples (K, J, E, T, R, S, N, L, U, B and C).
- Calibrator grade precision temperature measurement with 0.1*C & 0.1*F resolution.
- Detection of thermocouples disconnection.
- Source and Measure at the same time.
- Warning for overload, output open (mA) or short (V).
- Short circuit protection for output.
- Battery power indication (%) when turn on the calibrator.
Applications: - Calibration of 4~20mA panel meters.
- LED brightness testing (0~24mA).
- Temperature calibration of panel meters or instruments for 11 types of thermocouples.
Electrical Specifications:
(23+/- 5°C, 10 minutes after turning on the power)
DC mA SOURCE (Max. load 1KΩ, Max. voltage supply 24V）
|
Range |
Resolution |
Accuracy |
|
0~4mA |
1μA |
± 0.025% ±10μA |
|
4~20mA |
1μA |
± 0.025% ±5μA |
|
20~24mA |
1μA |
± 0.025% ±5μA |
When output Open, the LCD displays “OL”.
DC V SOURCE (Max. load 24mA, Short circuit protection < 25mA)
|
Range |
Resolution |
Accuracy |
|
0~4V |
1mV |
± 0.05% ± 10mV |
|
4~20V |
1mV |
± 0.05% ±5mV |
|
20~24V |
1mV |
± 0.05% ±5mV |
When output Short circuit, the LCD displays “OL”.
Frequency SOURCE (TTL, Square wave, Duty cycle = 1~99%）
|
Range（Hz） |
Resolution |
Accuracy |
|
1.0~1000.0Hz |
0.1Hz |
0.1Hz |
|
1000~10000Hz |
1Hz |
1Hz |
|
10000~20000Hz |
1Hz |
10Hz |
DC mA MEASURE
|
Range |
Resolution |
Accuracy |
|
0.005~4mA |
1μA |
±0.025%±5dgts |
|
4~20mA |
1μA |
±0.025%±5dgts |
|
20~24mA |
1μA |
±0.025%±5dgts |
If reading of mA (measure) is less than 5 digits, it is displayed as 0.
DC V MEASURE
|
Range |
Resolution |
Accuracy |
|
0~24V |
0.001V |
±0.025%±5dgts |
If reading of V (measure) is less than 5 digits, it is displayed as 0.
Temperature of Thermocouples (MEASURE)
(Resolution 0.1C&0.1F, Internal cold junction compensation, Thermocouples
accuracy not included, 3 minutes after plugging in thermocouples.)
|
|
°C |
°F |
||
|
Range |
Accuracy |
Range |
Accuracy |
|
|
K |
-200 to -150 |
2.0 |
-382 to -238 |
3.6 |
|
-150 to 0 |
1.2 |
-238 to 32 |
2.1 |
|
|
0 to 1000 |
0.8 |
32 to 1832 |
1.4 |
|
|
1000 to 1370 |
1.2 |
1832 to 2498 |
2.1 |
|
|
J |
-200 to -150 |
2.0 |
-382 to -238 |
3.6 |
|
-150 to 0 |
1.0 |
-238 to 32 |
1.8 |
|
|
0 to 1050 |
0.7 |
32 to 1922 |
1.2 |
|
|
E |
-200 to -150 |
1.5 |
-382 to -238 |
2.7 |
|
-150 to 0 |
0.9 |
-238 to 32 |
1.6 |
|
|
0 to 850 |
0.7 |
32 to 1562 |
1.2 |
|
|
T |
-200 to -150 |
1.5 |
-382 to -238 |
2.7 |
|
-150 to 0 |
1.2 |
-238 to 32 |
2.1 |
|
|
0 to 400 |
0.8 |
32 to 752 |
1.4 |
|
|
R |
0 to 500 |
1.8 |
32 to 932 |
3.2 |
|
500 to 1760 |
1.5 |
932 to 3200 |
2.7 |
|
|
S |
0 to 500 |
1.8 |
32 to 932 |
3.2 |
|
500 to 1760 |
1.5 |
932 to 3200 |
2.7 |
|
|
N |
-200 to 0 |
1.5 |
-328 to 32 |
2.7 |
|
0 to 1300 |
0.9 |
32 to 2372 |
1.6 |
|
|
L |
-200 to 0 |
0.9 |
-328 to 32 |
1.6 |
|
0 to 900 |
0.7 |
32 to 1652 |
1.2 |
|
|
U |
-200 to 0 |
1.1 |
-328 to 32 |
1.9 |
|
0 to 600 |
0.7 |
32 to 1112 |
1.2 |
|
|
B |
600 to 800 |
2.2 |
1112 to 1472 |
3.9 |
|
800 to 1000 |
1.8 |
1472 to 1832 |
3.2 |
|
|
1000 to 1820 |
1.4 |
1832 to 3308 |
2.5 |
|
|
C |
0 to 1800 |
1.0 |
32 to 3272 |
1.8 |
|
1800 to 2310 |
1.5 |
3272 to 4190 |
2.7 |
|
General Specifications:
|
Dimension |
214.0 (L) x 98.7(W) x 56.0(H) mm 8.4" (L) x 3.9" (W) x 2.2" (H) |
|
Weight |
650g / 22.9oz (batteries included) |
|
Operation Environment |
0°C ~ 50°C < 85% RH |
|
Storage Environment |
-20°C ~ 60°C < 75% RH |
|
Accessories |
Carrying case x 1 User manual x 1 1.5V SUM-3 Battery x 5 K-type thermocouples (1M, single plug) x 1 Alligator clips x 2 (black and red) Test leads x 2 (black and red) |
