Particle Counter/PM2.5 Air Quality Monitor
Home > Products > DC/AC Particle Counter/PM2.5 Air Quality Monitor > Multi-channel Suspended Particulate Matter Analyzer
PM1.0/PM2.5/PM5/PM10
Suspended Particulate Matter (PM) Concentration
Suspended Particulate Matter (PM) Particle Count
-en.jpg)

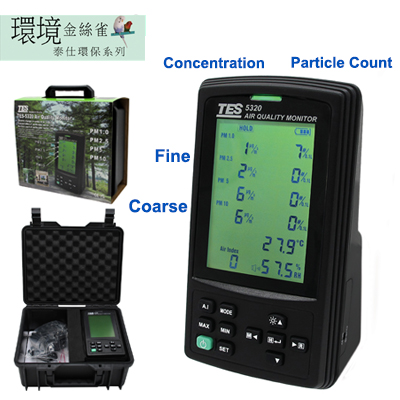

TES-5320
Multi-channel Suspended Particulate Matter Analyzer PM1.0/PM2.5/PM5/PM10 Suspended Particulate Matter (PM) Concentration Suspended Particulate Matter (PM) Particle Count
Product Features
- Fine particulate matter (PM1.0, PM2.5, PM5, PM10) measurement (>0.3μm)
- Temperature and Humidity measurements
- PM2.5 health index (0 ~ 9) detection and alarm
- LCD backlight control function
- PM time weighted average reading
- Data hold and MAX/MIN with time stamp function
- Five-color LED indication Air Quality Index Category
- Preset warning point of buzzer alarm, LED display
- Manual data memory and read function
|
Air Pollution Regulation
|
WHO
|
European
Union
|
USA
|
Canada
|
Australia
|
Japan
|
South
Korea
|
Hong
Kong
|
China
|
Thailand
|
Taiwan
|
||||||
|
IT-1
|
IT-2
|
IT-3
|
AQG
|
United
States
|
California
|
Class1
|
Class2
|
||||||||||
|
PM2.5
μg/m3
|
Yearly average
|
35
|
25
|
15
|
10
|
25
|
12
|
12
|
-
|
8
|
15
|
-
|
35
|
15
|
35
|
25
|
15
|
|
Daily average
(24-hour)
|
75
|
50
|
37.5
|
25
|
-
|
35
|
-
|
30
|
25
|
35
|
-
|
75
|
35
|
75
|
50
|
35
|
|
|
Measurement range
|
PM Concentration:0 to 150μg/m3
PM Particle Count:0 to 9999#/0.1L
Humidity: 1% to 99% RH
Temperature: 0℃ to +60℃(32℉ to +140℉)
|
|
Resolution
|
1μg/m3, 1ppm, 0.1% RH, 0.1℃, 0.1℉
|
|
Accuracy
|
PM Concentration:
PM1.0 and PM2.5:
0 to 30μg/m3: ±15μg/m3
31 to 100μg/m3: ±20μg/m3
101 to 150μg/m3: ±20%rdg
PM5 and PM10:
0 to 100μg/m3: ±25μg/m3
101 to 150μg/m3: ±20%rdg
PM Particle Count:
PM1.0 and PM2.5:
0 to 1000#/0.1L: ±100#/0.1L, 1001 to 9999#/0.1L: ±10% of reading
PM5 and PM10:
0 to 1000#/0.1L: ±250#/0.1L, 1001 to 9999#/0.1L: ±25% of reading
Humidity: ±5%
Temperature: ±1.0℃, ±1.8℉
|
|
Response time
|
PM2.5: ≦30sec
Humidity/Temperature: Equilibrate for 40 minutes under ambient conditions. (After power-on)
|
|
Sampling rate
|
1 sample/second
|
|
Data memory capacity
|
99 sets. (Direct reading from LCD display)
|
|
Operating temperature and humidity
|
0℃ to 60℃, below 95% RH
|
|
Storage temperature and humidity
|
-10℃ to 60℃, below 70% RH
|
|
Power supply
|
7.4V, 1150mAh rechargeable Lithium-Ion battery pack, AC adaptor
|
|
Battery life
|
Approx. 10 hour
|
|
Dimensions
|
165mm(L)×93mm(W)×75mm(T)
|
|
Weight
|
Approx. 340g
|
|
Accessories
|
Instruction manual, Temperature & Humidity Air filter mesh x 2,AC adaptor
|
