Anemometer TES-1343|TES Electrical Electronic Corp.

wind speed / wind volume / wind direction/ wind pressure

Home > Products > DC/AC wind speed / wind volume / wind direction/ wind pressure > Anemometer

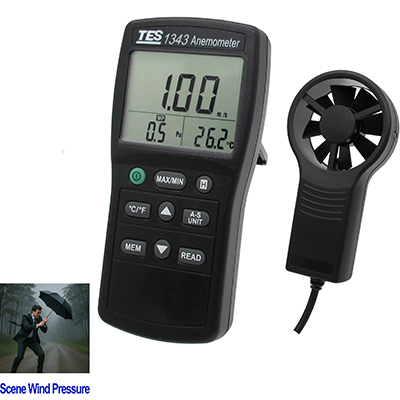

TES-1343

Anemometer

Product Features

Wind pressure display
Correct wind pressure helps ensure the efficiency and stability of the air conditioning system
Correct wind pressure helps improve air conditioning comfort
Wind temperature measurement
Velocity units select: m/s, ft/min, knots,
km/hr and Bft
Data hold & Maximum/Minimum/Average function

Specification
Application
Download

Display	Triple display, 4 digit LCD reading
Air velocity	Range: 0.5 to 30 m/s Resolution: 0.01 m/s Accuracy: ±2%rdg ±0.3m/s
Wind pressure	Range: 0 to 800Pa Resolution: 0.1Pa Accuracy: ±2Pa (at 25°C) ±4Pa (-20°C to 85°C)
Wind temperature	Range: -40 to 85°C (-40°F to 185°F) Resolution: 0.1°C (0.1°F) Accuracy: ±1°C (at 25°C) ±1.8°F (at 77°F)
Atmospheric pressure	Range: 300 to 1200hPa Resolution: 0.1hPa (300.0 to 999.9hPa) 1hPa (1000 to 1200hPa) Accuracy: ±2hPa (at 25°C) ±4hPa (-20°C to 85°C)
Warm up time	< 1 minute
Response time	Velocity: < 2 seconds Temperature: 63% < 10s (from 15°C to 45°C)
Operating conditions	0°C to 50°C (32°F to 122°F), ≤ 80%RH
Power source	6 pcs 1.5V size AA Battery
Battery life	Approx. 25 hours
Size & weight	150(L)×72(W)×35 (H)mm / Approx. 340g
Accessories	Instruction manual, Battery, Carrying case
