wind speed / wind volume / wind direction/ wind pressure
Home > Products > DC/AC wind speed / wind volume / wind direction/ wind pressure > Metal Vane Anemometer
(6).jpg)

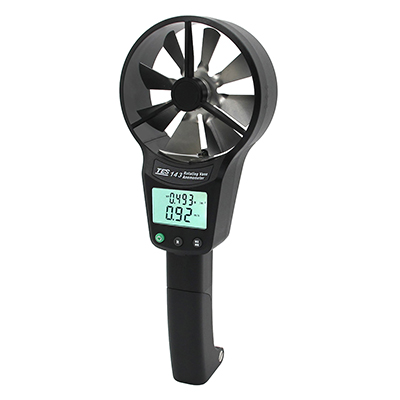

TES-143
Metal Vane Anemometer
Product Features

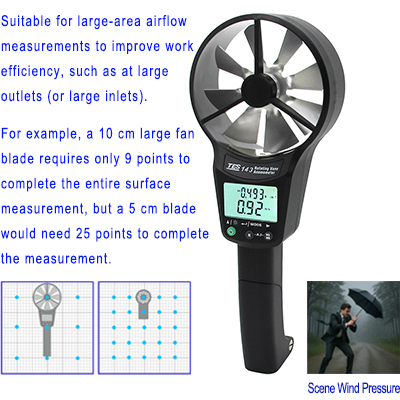

- Large size fan
- Air flow measurement
- Wind velocity alarm function
- Wind velocity Maximum/Minimum/Average function
- Wind temperature, Atmospheric pressure measurement
- Data hold
- Wind Velocity units select: m/s, knots, ft/min
Volumetric units select: m3/s, ft3/min, l/s
Temperature units select: °C, °F
Atmospheric units select: hPa, Psi
|
Display |
Two display, 4 digit LCD reading |
|
Air velocity |
Range: 0.5 to 30m/s Resolution: 0.01m/s Accuracy: ±2%rdg ±0.3m/s |
|
Volumetric flow rate |
Range: 0 to 999.9m3/s Resolution: 0.01m3/s |
|
Wind temperature |
Range: -20 to 85°C Resolution: 0.1°C Accuracy: ±1°C (25°C) ±2°C (-20 to 85°C) |
|
Atmospheric pressure |
Range: 10 to 2000hPa Resolution: 1hPa Accuracy:±2hPa (20°C) ±4hPa (-20 to 85°C) |
|
Warm up time |
< 1 minute |
|
Response time |
Velocity: < 2 seconds Humidity: Temperature: |
|
Operating conditions |
0°C to 50°C (32°F to 122°F), ≤ 80%RH |
|
Power source |
9V Battery |
|
Battery life |
Approx. 12 hours |
|
Size & weight |
290(L)×113(W)×61(H)mm / Approx. 288g |
|
Accessories |
Instruction manual, Battery, Carrying case |
