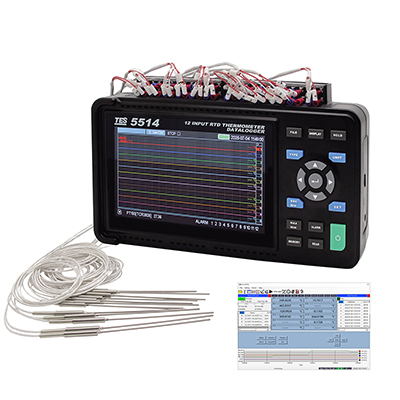

TES-5514
12 INPUT DATALOGGER 4-WIRE RTD THERMOMETER
Product Features
- Highly accurate thermometer with 4-wire RTD sensor
- 12 input T1 ~ T12 temperature display
- Programmable Hi/Lo alarm for 12 inputs (Independent input setup)
- 12 input temperature difference calculations
- 12 input independent channel configuration
- Display of MAX, MIN and current values of 12 inputs
- Memory and read function (99 sets)
- 2MB auto datalogging capacity
- SD card auto datalogging capacity
- USB interface
APPLICATIONS:
- Multi-point temperature measurement in ovens and high-temperature furnaces
- Multi-point temperature measurement in industrial equipment and piping systems
- Multi-point temperature measurement in laboratories and test equipment
|
Sensor
|
Nominal Resistance
|
Temperature Coefficient
|
|
50Ω
|
385
|
|
|
100Ω
|
385, 3911, 3916, 3920, 3926, 3928
|
|
|
200Ω
|
385
|
|
|
500Ω
|
385
|
|
|
1000Ω
|
375, 385
|
|
|
Measuring range
|
-200°C ~ +850°C
|
|
|
Resolution
|
0.0001°C
|
|
|
Unit of measurement
|
°C, °F, K, Ω
|
|
|
Instrument accuracy
(excluding probe accuracy) |
±0.01°C: -200°C ~ 0°C
±0.008°C: 0°C
±0.009°C: 0°C ~ 232°C
±0.01°C: 232°C ~ 420°C
±0.015°C: 420°C ~ 850°C
±0.015°C: 420°C ~ 850°C
|
|
|
Display
|
7” (1024x600), TFT-LCD
|
|
Sampling rate
|
0.5s ~ 7.5s
|
|
Temperature input connector
|
Y-type terminal or bare wire
|
|
Operating/storage conditions
|
0°C ~ 50°C < 80% RH, -10°C ~ 60°C < 70% RH
|
|
Power source
|
3.7V, 2Ah x 4 rechargeable Li-ion battery
|
|
Battery life
|
Approx. 11 hours (with backlight)
|
|
Size
|
272(L)×145(W)×57(T) mm
|
|
Weight
|
Approx. 1030g (with batteries)
|
|
Accessories
|
Instruction manual, Rechargeable battery, USB Type-C cable, SD card, Software CD, Carrying case, AC adapter, 2m 4-wire Pt100 RTD α=385 Sensor (Class A) x 1
|
|
Optional Accessories
|
2m 4-wire Pt100 (100Ω @ 0°C α=385) RTD Sensor (Class A)
3m 4-wire Pt100 (100Ω @ 0°C α=385) RTD Sensor (Class A)
|
